Mercedes-AMG M156 Forged Internals — Rods & Pistons Kit

The Mercedes-AMG M156 6.2L naturally aspirated V8 is one of the strongest factory AMG engines ever built — the stock bottom end handles 750–800HP before internals become the limiting factor. However, when building beyond that for supercharger or turbo conversions, forged rods and pistons are non-negotiable. Our M156 forged internals kit replaces the stock cast components with race-grade 4340 steel rods and forged pistons rated for 1,500HP and beyond.

What's Included

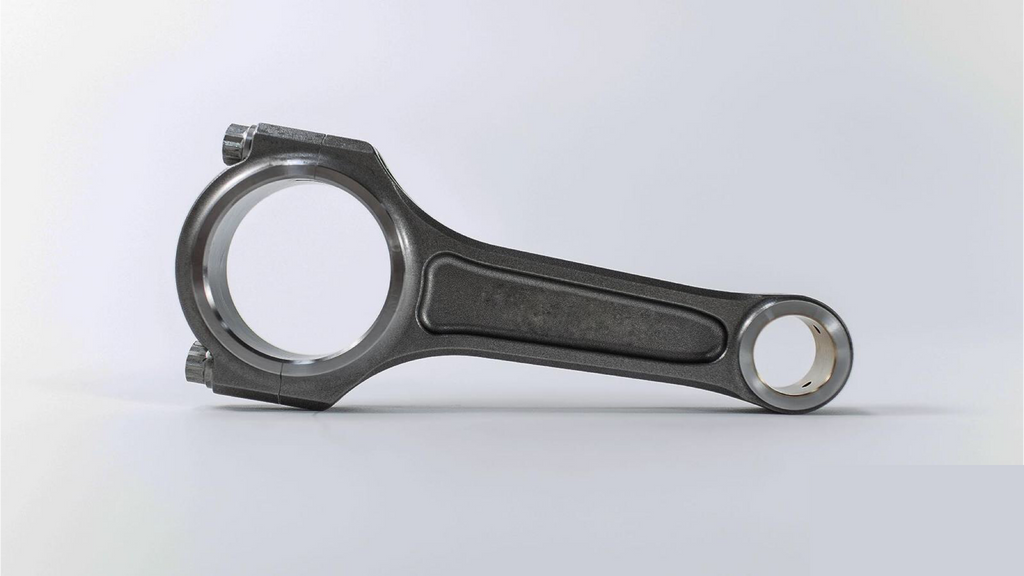

• 8x Forged Connecting Rods — 4340 aircraft-grade steel, H-beam design

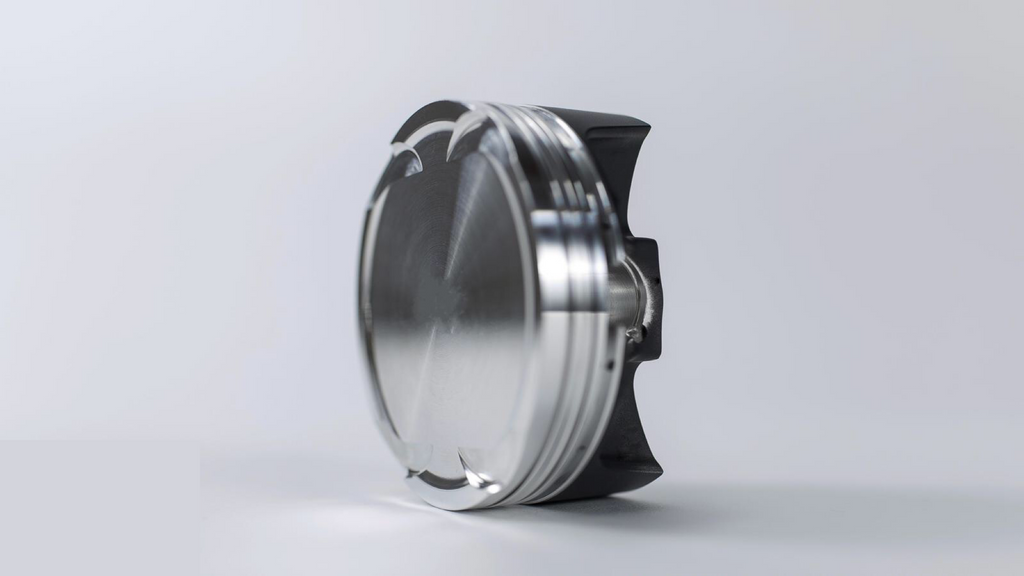

• 8x Forged Pistons — CP or equivalent, matched to M156 102.2mm bore
• ARP Head Studs — mandatory for boost and forced induction builds
• ARP Rod Bolts — 220,000 PSI rated
• Piston Rings — Low-tension performance ring pack
• Wrist Pins & Clips — High-strength tool steel
• Balanced and Matched Set — within ±1.5g

Key Features

• Ceramic-Coated Piston Tops — Thermal barrier coating reduces heat transfer to the piston crown, protecting against detonation under forced induction
• Teflon-Coated Skirts — Anti-friction coating reduces piston-to-wall contact friction, improving reliability and reducing wear under sustained high-RPM operation
• Factory Compression Ratio — Maintains stock compression geometry for seamless integration with supercharger and turbo calibrations
• 1,500HP+ Rated — Engineered to withstand extreme cylinder pressures from supercharger and turbo conversions
• Drop-In Fitment — Direct replacement for factory connecting rods and pistons, no block modifications required

Only need pistons?
For M156 naturally aspirated high-RPM race builds where factory rods are still serviceable, or as a preventative piston upgrade before adding forced induction, we offer standalone forged piston sets at $2,999. Ceramic-coated crowns, Teflon-coated skirts, 1,500HP+ rated.
M156 Forged Pistons →

Compatible Vehicles

• Mercedes-AMG C63 (W204) — 2008–2015 — all variants including 507 Edition
• Mercedes-AMG E63 (W211) — 2006–2009 and E63 (W212) — 2009–2011
• Mercedes-AMG CLS63 (W219) — 2006–2011
• Mercedes-AMG SL63 (R230) — 2008–2011
• Mercedes-AMG ML63 (W164) — 2007–2011
• Mercedes-AMG GL63 (X164) — 2007–2012
• Mercedes-AMG CLK63 (C209) — 2006–2009 and CLK63 Black Series
• Mercedes-AMG SLS (C197) — 2010–2014
• Engine: M156 6.2L Naturally Aspirated V8 (E63 KE)

Why Upgrade M156 Internals?

The stock M156 bottom end uses cast hypereutectic pistons (forged on 2010+ P31/507 package cars) and strong connecting rods. While excellent for street use, sustained high-boost operation on supercharger or turbo builds generates heat cycles that fatigue cast components over time. Forged internals absorb shock loads, handle extreme cylinder pressures, and run cooler under sustained wide-open throttle. For any M156 build targeting 800HP+, forged internals are the foundation everything else is built on.

Why YPG Motorsport?

YPG Motorsport holds the world record for the first sub-10-second Mercedes-AMG C63 W205 quarter mile (9.97s at 828 WHP). Our forged internals kits across the entire AMG range are sourced from CP-Carrillo or equivalent tier-1 forging houses, inspected and matched before shipping.

Ships worldwide via FedEx International Priority from Kuwait.
