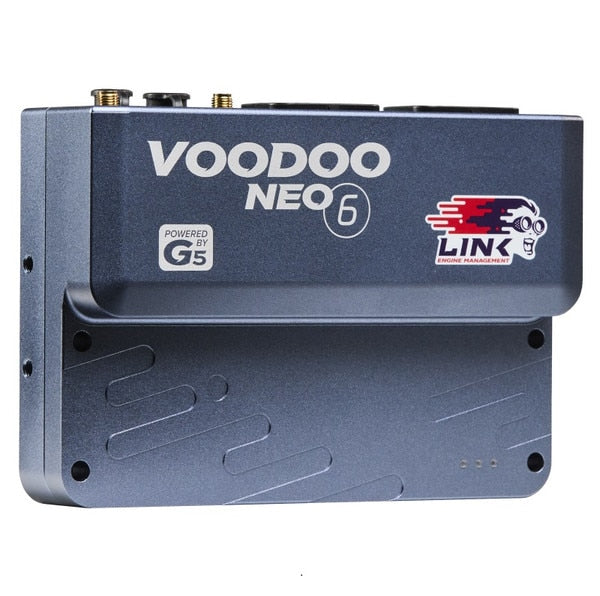

The Link G5 Voodoo Neo 6 is the larger variant in Link's next-generation standalone ECU range, capable of controlling engines up to eight cylinders with port or direct injection, or six cylinders with staged (port + DI) injection. Built on the G5 Voodoo Neo platform, it delivers 1GB of onboard data logging, Wi-Fi, Ethernet, GPS, and USB-C connectivity alongside highly customizable I/O.
The Neo 6 shares the same advanced architecture as the Neo 4 but with more injection and ignition drives for higher-cylinder-count applications. Dual onboard e-throttle H-bridges, multi-purpose ADIO pins, configurable analogue temp inputs, K-line support, and CAN power through a Weipu connector round out the feature set. Compatible with G4X map files through the same PC Link tuning software.
- Cylinder support: Up to 8 cylinders port/DI + direct spark, or 6 cylinders with staged injection
- Data logging: 1GB onboard — double G4X capacity
- Connectivity: Wi-Fi, Ethernet, GPS (50Hz), USB-C, CAN
- E-throttle: Dual onboard H-bridges
- K-line: Supported for OBD communication
- Software: PC Link — compatible with G4X and G5 map/log files
Requires connector kits (sold separately). Genuine Link ECU product available from YPG Motorsport with worldwide shipping.
