BMW XM G09 Downpipes — Catless, 200-Cell & 400-Cell | S68 4.4L Twin-Turbo V8 | 2023+

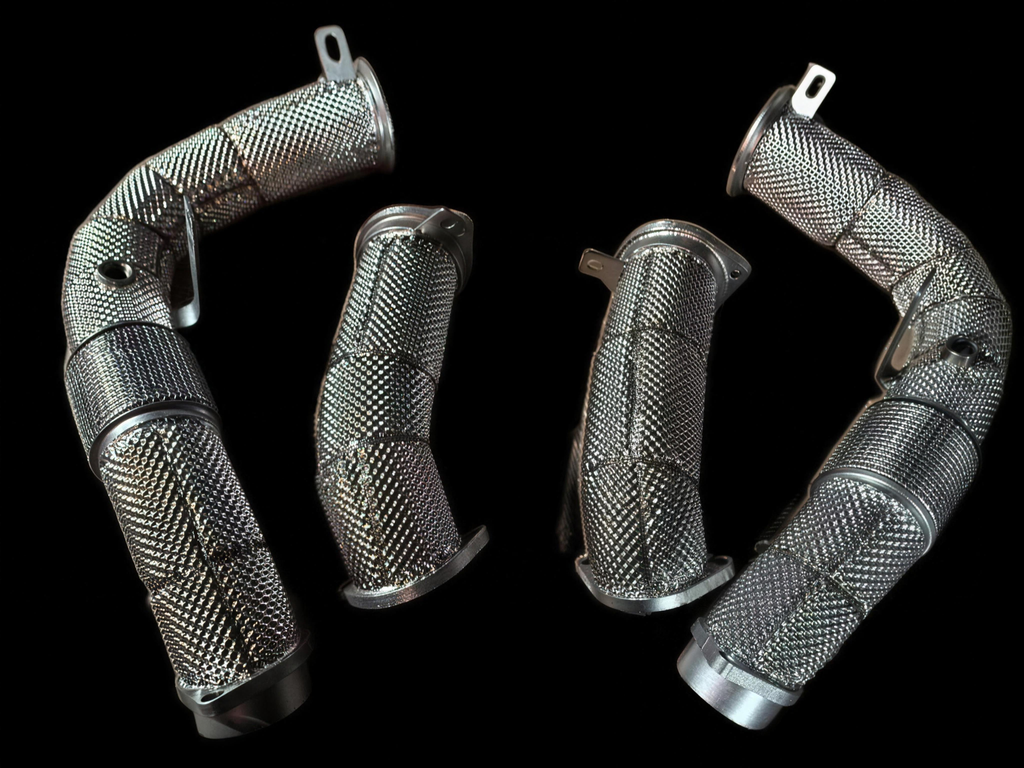

YPG Motorsport downpipes for the BMW XM (G09) replace the restrictive factory catalytic converters on the S68 4.4L twin-turbo V8 with mandrel-bent 304 stainless steel pipes. The factory cats sit directly behind the turbochargers — the single biggest restriction in the exhaust path. Removing them unlocks faster spool, sharper throttle response, reduced exhaust gas temperatures, and a significantly more aggressive V8 exhaust note with pronounced turbo whistle on spool.
Catless vs 200-Cell vs 400-Cell — Which to Choose?
| Option | Flow | Sound | Emissions | Best For |
|---|---|---|---|---|
| Catless | Maximum — zero restriction | Loudest, raw turbo bark | No catalytic conversion | Track builds, maximum power, off-road use |
| 200-Cell High-Flow Catted | Very high — minimal restriction | Aggressive with less interior resonance | Reduced emissions vs catless | Street/track balance, spirited daily driving |
| 400-Cell GESI Catted | High flow — OEM+ level | Enhanced over stock, refined | Near-OEM emissions compliance | Daily drivers wanting performance + compliance |
Power Gains with ECU Calibration
When paired with a YPG ECU calibration, the XM S68 delivers substantial gains over the stock 644 HP. The S68 responds immediately to reduced backpressure with faster spool, increased boost, and a broader powerband. For the full experience, we recommend downpipes + ECU tune as a package — the tune is required to eliminate the CEL and unlock the additional timing and boost the engine can safely handle.
Compatibility
- 2023+ BMW XM (G09)
- 2023+ BMW XM Label Red (G09)
- S68 4.4L Twin-Turbo V8 — all variants
Key Specifications
- Material: Low-carbon 304 stainless steel
- Construction: TIG welded, hand finished
- Flanges: CNC-machined 304 stainless — laser-cut OEM mounting points
- Fitment: Direct OEM replacement — bolt-on, no fabrication required
- Heat Management: Double-wall perforated heat shield wrap (factory-style)
- Warranty: Lifetime
What's Included
- 1× pair stainless steel downpipes (catless, 200-cell, or 400-cell per selection)
- All necessary bolts, gaskets, and clamps
- OEM-style mount points for factory exhaust retention
Installation
Professional installation recommended. Requires vehicle lift access. Installation time is approximately 3–4 hours. An ECU calibration is required to eliminate the CEL and unlock the full performance potential. YPG Motorsport offers remote ECU flashing worldwide — OBD2 tool shipped to your door, guided session, 30–45 minutes, fully reversible to stock.
Why YPG Motorsport
Since 2011, YPG Motorsport has been tuning and building high-performance engines across BMW S68, S63, S58, S55, N63, and N55 families. We know the S68 platform inside and out. Ships worldwide with free delivery. GCC stock available for same-week dispatch to Kuwait, Saudi Arabia, UAE, Qatar, Bahrain, and Oman.
Frequently Asked Questions
Do I need a tune with XM downpipes?
An ECU calibration is required to eliminate the check engine light and unlock the full power gains. Without a tune, you'll still see some improvement in throttle response and sound, but the CEL will remain.
What's the difference between catless and 200-cell?
Catless removes the catalytic converter entirely for maximum flow and power. 200-cell high-flow cats retain some catalytic conversion while still flowing significantly more than the factory 600+ cell units. Choose catless for track builds, 200-cell for aggressive street use, or 400-cell GESI for maximum compliance.
How long does installation take?
Approximately 3–4 hours with proper lift access. The downpipes bolt directly to the factory mounting points with no fabrication or cutting required.
Are YPG downpipes covered by warranty?
All YPG Motorsport downpipes carry a lifetime warranty against manufacturing defects.
