BMW S65 Forged Internals — I-Beam Rods & Pistons Kit
The BMW S65 4.0L naturally aspirated V8 is one of the most celebrated engines BMW M has ever built — the heart of the legendary E90/E92/E93 M3. While the stock internals handle the factory 414HP reliably, any serious power build — whether supercharged, turbocharged, or high-RPM naturally aspirated — demands stronger internals. Our S65 forged internals kit replaces the factory cast components with race-grade forged units rated for serious power on pump fuel, E30, or full E85.
What's Included

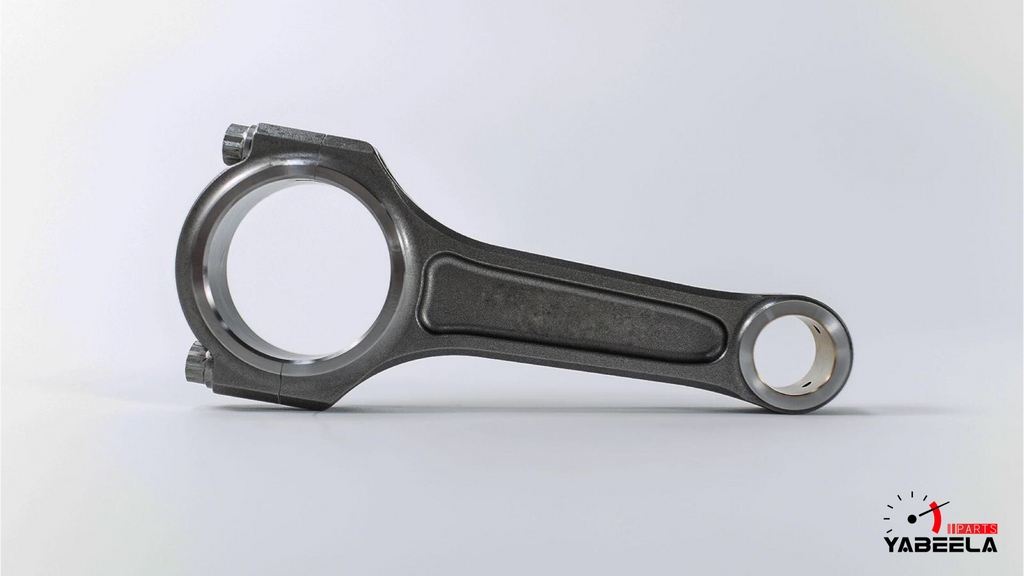

- 8x Forged Connecting Rods — 4340 aircraft-grade steel, I-beam design, 140.72mm centre-to-centre

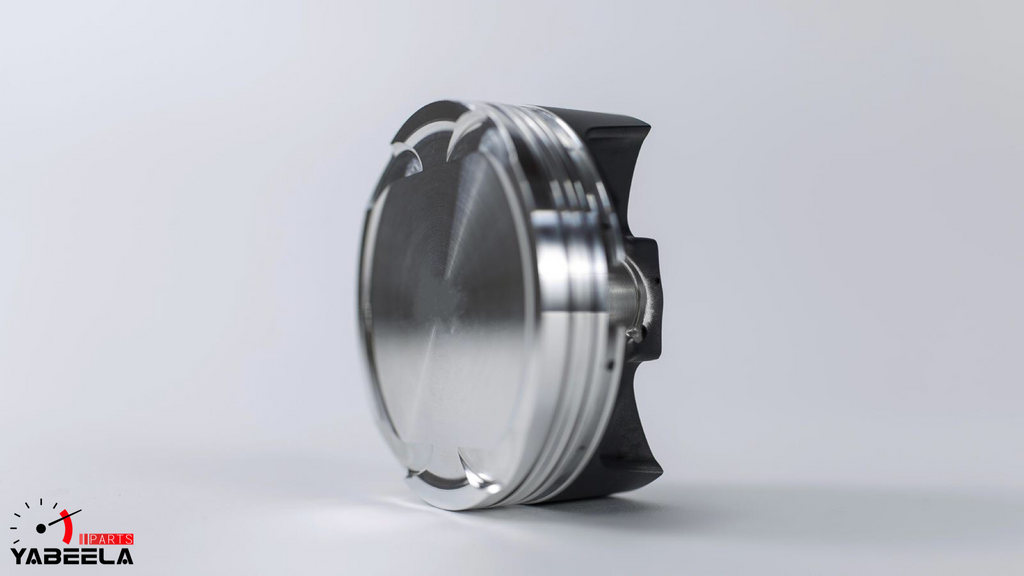

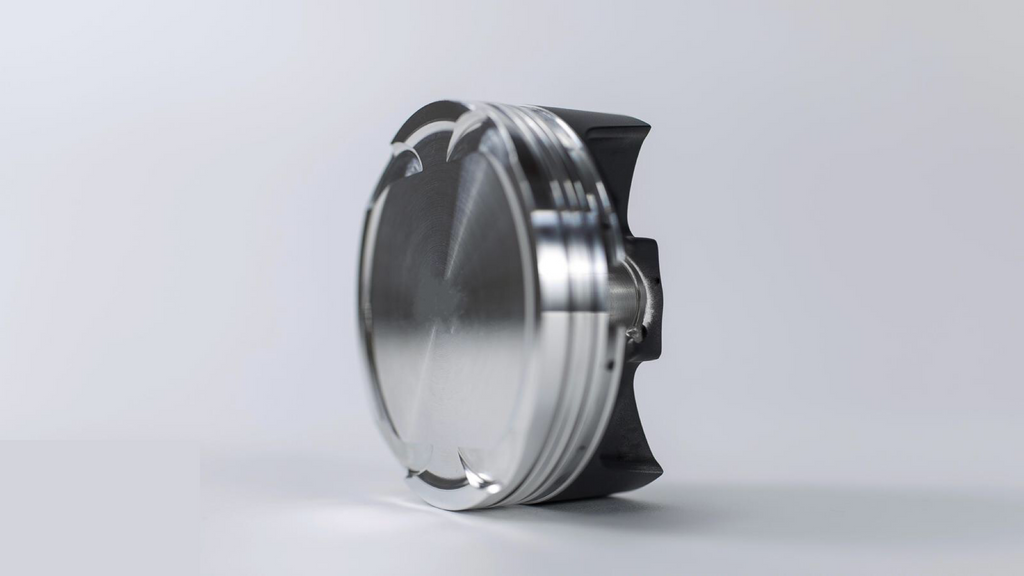

- 8x Forged Pistons — CP or equivalent specification, 92.00mm bore (stock bore)
- ARP 2000 Rod Bolts — 220,000 PSI rated (3/8")
- AMPCO 18 Wrist Pin Bushings — superior wear and fatigue resistance
- Piston Rings — Low-tension performance ring pack
- Balanced and Matched Set — within ±1g (complete V8 set of 8)
Key Features
- Ceramic-Coated Piston Tops — Thermal barrier coating reduces heat transfer to the piston crown, protecting against detonation on supercharged, turbocharged, and high-RPM naturally aspirated builds
- Teflon-Coated Skirts — Anti-friction coating reduces piston-to-wall contact friction, improving reliability under sustained 8,000+ RPM operation
- Factory Compression Ratio (12.0:1) — Maintains stock S65 compression geometry for seamless ECU calibration integration
- 1,000HP+ Rated (200HP+ per cylinder) — Standard ARP 2000 configuration
- Optional ARP L19 Upgrade — Up to 260,000 PSI for extreme builds
- 9,000+ RPM Capable — I-beam profile designed for high-RPM V8 loading
Complete Kit — Not a Configurator
Most premium S65 internals sell as separate pistons, separate rods, separate ARP bolts, separate rings — multiple vendors, multiple shipments, multiple-way accountability. Sourcing CP-Carrillo S65-application pistons plus custom rods plus ARP hardware plus balancing service commonly lands at $4,500–5,500+ before you've assembled anything, and you're paying US-only domestic shipping on each order.
The YPG S65 kit is one order, one price, thermal-coated pistons included, ARP 2000 hardware included, AMPCO 18 wrist pin bushings included, balanced set of 8, FedEx International Priority to anywhere in the world. Every part matched and shipped together. $5,999 flat.
Compatible Vehicles
- BMW M3 — E90 Sedan (2007–2013)
- BMW M3 — E92 Coupe (2007–2013)
- BMW M3 — E93 Convertible (2007–2013)
- BMW M3 GTS — E92 (2010–2011) · S65B44 4.4L variant
- All S65 variants — S65B40, S65B40A, S65B44
Why Upgrade the S65 Internals?
The stock S65 uses forged aluminium pistons and fracture-split connecting rods from the factory. While adequate for the naturally aspirated setup, forced induction builds or high-RPM endurance applications push the factory rods past their design limits. The stock rods are the first failure point — typically bending or failing at the big end under sustained high-boost or high-RPM operation. Upgrading to 4340 I-beam forged rods with ARP fasteners and matched thermal-coated forged pistons gives you a bottom end that can handle supercharger kits, turbo conversions, and sustained track abuse without compromise.
Engineering Details
- Shot-peened for stress relief
- Multi-stage heat treated for maximum strength and fatigue life
- CNC machined to ±0.001mm centre-to-centre tolerance
- Magnaflux inspected for material consistency
- Finite Element Analysis (FEA) optimised beam profile
- Straight-cut pin end for increased durability
Why YPG Motorsport?
YPG Motorsport holds the world record for the first sub-10-second Mercedes-AMG C63 W205 quarter mile (9.97s at 828 WHP). The same forging sources and QC standards used to build our record-setting AMG bottom ends are applied to every S65 kit. Sourced from CP-Carrillo or equivalent tier-1 forging houses, thermal-coated, balanced and matched before shipping.
Ships worldwide via FedEx International Priority from Kuwait.
Related Products
- BMW N55 Forged Internals — 1,000HP+ Rated | Pistons, Rods, Rings — $4,999
- BMW B58 Forged Internals — 1,500HP Rated | Pistons, Rods, Rings — $4,999
Frequently Asked Questions
How much does the BMW S65 Forged Internals kit cost?
The BMW S65 Forged Internals kit is $5,999 through YPG Motorsport with free worldwide shipping. Complete kit — pistons, rods, ARP 2000 bolts, AMPCO 18 pin bushings, rings, balanced set of 8 — one order.
Are the pistons thermal-coated?
Yes. All YPG S65 forged pistons ship with ceramic thermal barrier coating on the crowns and Teflon anti-friction coating on the skirts — included at no extra cost. Standalone thermal coating services (Swain Tech, Calico) typically run $200–400 per set.
Are these drop-in replacements for the S65?
Yes. Direct drop-in replacement for factory S65 connecting rods and pistons. 92.00mm bore with 12.0:1 stock compression ratio. Set of 8 for the complete V8.
Why I-beam rods instead of H-beam for the S65?
The S65 is a high-revving V8 that thrives on RPM. I-beam rods are lighter and distribute loads more evenly at high RPM, making them the ideal choice for the S65's 8,300+ RPM operating range. They also provide better piston clearance in the compact V8 block.
Do you ship forged internals worldwide?
Yes. Free worldwide shipping on all YPG Motorsport forged internals.
